Thông tin sản phẩm Máy chủ Dell PowerEdge R760xd2 – up to 28×3.5″

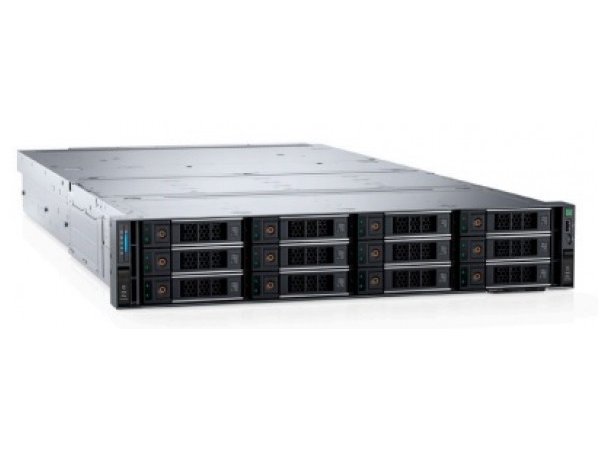

Dell EMC PowerEdge R760xd2
The Dell PowerEdge R760xd2 is Dell’s latest 2-socket storage-optimized rack Server that is designed to run complex workloads using highly scalable memory, I/O, and network options.
The new Dell EMC PowerEdge R760xd2 main specification
* Processor:
• Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor or
• Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor and optional Intel® QuickAssist Technology
* Memory:
• 16 DDR5 DIMM slot, supports RDIMM 1.5 TB max
• Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only
* Storage Controllers:
• Internal Controllers (RAID): PERC H755, PERC H965i, PERC H355
• Internal Controllers (non-RAID): HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives (hot swappable), or USB
• External HBAs (non-RAID): HBA355e
• External Controllers (RAID): H965e
* Drive Bays:
Front bays:
• Up to 12 x 3.5-inch SAS/SATA max 264 TB
Mid bays:
• Up to 12 x 3.5-inch SAS/SATA max 264 TB
Rear bays:
• Up to 4 x 3.5-inch SAS/SATA max 88 TB
• Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
• Up to 2 x 2.5-inch NVMe max 15.36 TB
• 4 x E3.S NVMe max 30.72 TB
* Power Supplies: hot swap with full redundant
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1100W LVDC –48 — –60 VDC, hot swap redundant
• 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
* GPU Options: Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW* PCIe: Up to five PCIe slots
• Slot 1: 1 x16 Gen4 Low profile, Half length
• Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
• Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
• Slot 4: 1 x16 Gen4 Low profile, Half length
• Slot 5: 1 x16 Gen4 Low profile, Half length
The Dell EMC PowerEdge R760xd2 – Ideal for
• More powerful processors and available GPUs
• 7% more storage space for more data per rack
• Lower service costs save on overhead
• Air-cooled to fit in your current infrastructure
Thông số kỹ thuật Máy chủ Dell PowerEdge R760xd2 – up to 28×3.5″
| Server | |
| CPU Support | Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor. Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor |
| RAM Support | 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s |
| Drive Bays | Up to 12 x 3.5-inch SAS/SATA max 264 TB (Front) ; Up to 12 x 3.5-inch SAS/SATA max 264 TB (Mid) ; Up to 4 x 3.5-inch SAS/SATA max 88 TB or Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB |
| RAID Controller | PERC H755, PERC H965i, PERC H355 |
| Form Factor | 2U |
| PCIe | Slot 1: 1 x16 Gen4 Low profile, Half length Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length Slot 3: 1 x16 |
| Power Supply | 700W/1100W/1400W/1800W 200 |
| GPU Support | Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW |
