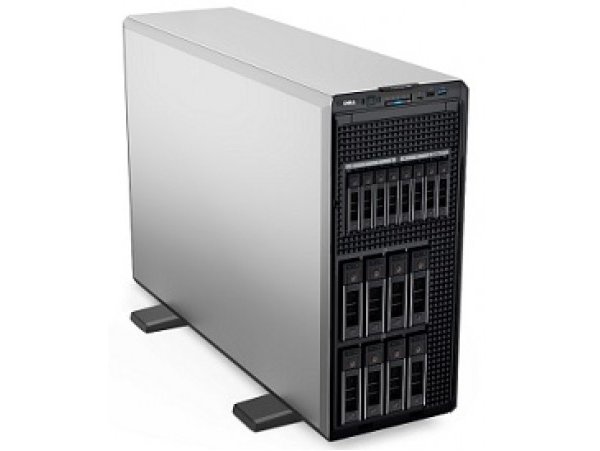

PowerEdge T560
The Dell PowerEdge T560, powered by the 4th Generation Intel® Xeon® Scalable processors, is an enterpriseclass tower Server that offers advanced technologies with accelerators.
Ideal for:
• Traditional corporate IT
• Database and Analytics
• Virtualization
• AI/ML and inferencing
Processor support:
• Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor
• Up to two 5th Generation Intel® Xeon Scalable processor, with up to 28 cores per processor
Memory :
• 16 DDR5 DIMM slots, supports RDIMM 1 TB max
• Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
• Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only
Storage controllers:
• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
• External HBA (non-RAID): PERC HBA355e
• Software RAID: S160 (for NVMe drives only)
Drive Bays:
Front bays:
• Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB
• Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB
• Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB
• Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB
Power Supplies:
• 2800 W Titanium 200—240 VAC or 2800 W 240 VDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant
• 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant
• 1400 W Titanium 277 VAC or 1400 W 336 VDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant
• 1100 LVDC -48 — (-60) VDC, hot swap redundant
• 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant
• 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant
• 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant
GPU Options: Up to 2 x 300 W DW or 6 x 75 W SW
PCIe support: Up to four PCIe slots
• Slot 1: x16 Gen5 Full height, Full length
• Slot 2: x16 Gen5 Full height, Full length
• Slot 3: x16 Gen4 Full height, Half length
• Slot 4: x16 Gen4 Full height, Half length
• Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
• Slot 6: x16 Gen4 Full height, Half length
Thông số kỹ thuật Máy chủ Dell PowerEdge T560 (Basic)
| Server | |
| CPU Support | Up to two 4th/5th Generation Intel Xeon Scalable processor, with up to 32/28 cores per processor |
| RAM Support | 16 DDR5 DIMM slots, supports RDIMM 1 TB max |
| Drive Bays | Support 812x 3.5-inch SAS/SATA (HDD/SSD) max 120TB/180 TB |
| RAID Controller | fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i |
| Form Factor | 4.5U Tower |
| PCIe | Up to six PCIe slots |
| Power Supply | From 600W to 2800W 200 |
