Thông tin sản phẩm Máy chủ Dell PowerEdge R860 – 8×2.5″ (Basic)

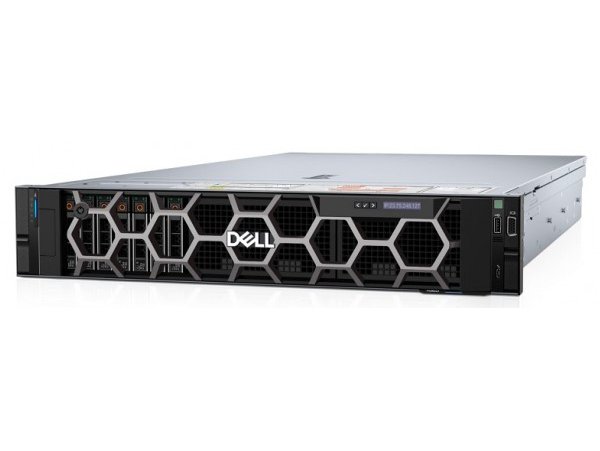

Dell EMC PowerEdge R860
The R860 with a 2U air-cooled form factor and four (4) Intel Xeon® Scalable Processors enables businesses to accelerate a wide variety of core and business-critical applications including databases, analytics, and other datadriven applications..
The new Dell EMC PowerEdge R860 main specification
* Processor: Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and optional Intel® QuickAssist Technology.
* Memory:
• 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
* Drive Bays:
Front bays:
• Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB
• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) drives max 61.44 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB
• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) drives max 30.72 TB
• Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB
* Power Supplies: hot swap with full redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
* GPU Options: N/A
* PCIe: Up to eight PCIe slots:
• Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
• Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
• Slot 3: 1 x16 Gen5 Low profile, Half length
• Slot 4: 1 x16 Gen5 Full height, Half length
• Slot 5: 1 x16 Gen5 Full height, Half length
• Slot 6: 1 x16 Gen5 Low profile, Half length
• Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
• Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
The Dell EMC PowerEdge R860 – Ideal for
• Large in-memory databases including SAP HANA, SQL, Oracle
• Data analytics
• AI and virtualization, VDI
Thông số kỹ thuật Máy chủ Dell PowerEdge R860 – 8×2.5″ (Basic)
| Server | |
| CPU Support | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor |
| RAM Support | 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s |
| Drive Bays | Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB ; 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB ; 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB |
| RAID Controller | PERC H755 |
| Form Factor | 2U |
| PCIe | Up to eight PCIe slots |
| Power Supply | 2 x 1400W |
| PSU Supports | 1100W /1400W / 1800W / 2400W / 2800W Platinum hot swap redundant |
